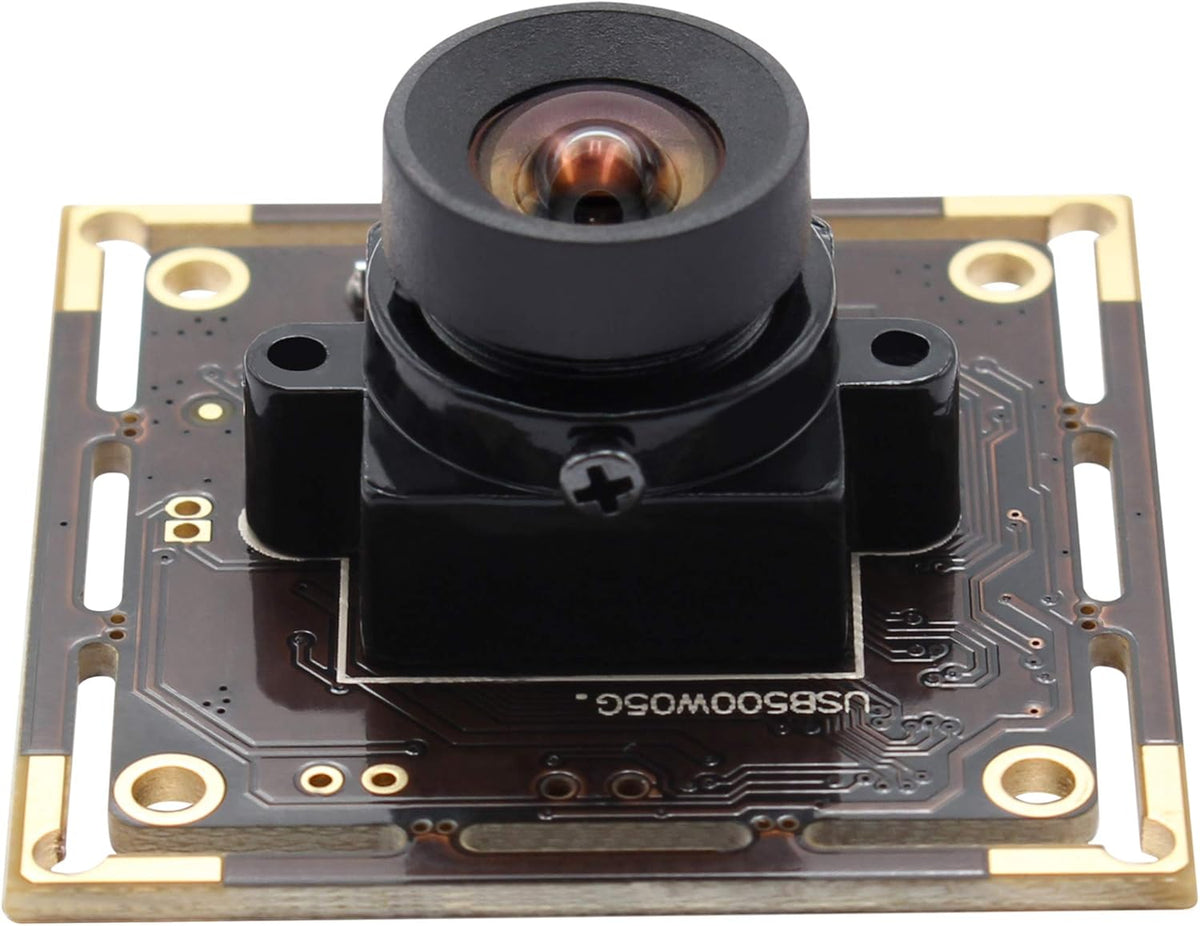

5 Megapixel USB Webcam with 100 Degree No Distortion Lens V36867
5 Megapixel USB Webcam with 100 Degree No Distortion Lens V36867
Excellent Quality Image Aptina Sensor： USB webcamera use 1/2.5 inch Aptina MI5100 CMOS Sensor,Color reproduction deviation less than 20%,which is the high standard in terms of image quality and sensitivity performance,Perfect for high leval video system for personal or industrial
High Difinition 2592X1944 15fps：Max. Resolution :2592(H) X 1944(V):High Definition 1280x720@30fps/2592x1944@ 15fps,Webcamera usb module with 5 megapixel high pixel technology for sharp image and accurate color reproduction.Good to use for high leval products image intergation or housekeeping
Plug and Play：USB camera module with USB 2.0 only plug and camera into computer USB port and running the software can make video display and recording work. No drive installation is required.Webcam Test Software: Camerfi for Android ,Montinon eye OS for Raspberry Pi ,Amcap for Windows
Wide Applicatons：5MP webcam with 100 Degree Undistorted Imaging Webcam for Industrial, Machine Vision,Correctable usb camera are widely used in machinery equipment,all-in-one machine,robot,scanner,industrial machine,medical auxiliary equipment.Our usb camera can work along with the webcam software installed by default in the PC
Specification:
Resolution: 5Megapixel 2592X1944
Sensor: 1/2.5 inch Aptina MI5100 CMOS
5.0megapixel Max. 2592(H)x1944(V)pixels
Size: 38X38mm, 32x32mm
Voltage: DC 5V
Work temperature:-20~70 DEGREES
Current： 150mA
Picture format： MJPEG or YUY2 optional
USB Protocal： USB2.0 HS/FS
Auto exposure AEC Support
Auto white blance AEB Support
Adjustable parameters：Brightness/Contrast/Color saturation /Definition/Gamma/WB
Performance:
2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG
1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG
1920x1080 @ 30fps MJPEG / 1280x720 @ 30fps MJPEG
800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEG
Effective Pixels:
2592(H)x1944(V)pixels /2048 (H)x1536(V)pixels /1600(H)x1200(V)pixels /
1920(H)x1080(V) pixels/ 1280(H)x1024(V)pixels/1280(H)x720(V)pixels/
1024(H)x768(V)pixels/800(H)x600(V)pixels/640(H)x480(V)pixels
Support OS ：'WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above'
| 2 Megapixel usb camera module | 5 Megapixel fisheye lens usb camera | 1.3 MP synchronized dual lens usb camera | 2 Megapixel varifocal lens webcam | 8 Megapixel varifocal lens usb camera | 2 Megapixel dome case usb camera with 24pcs IR LED | |
|---|---|---|---|---|---|---|
| Image Sensor | IMX322 | Aptina MI5100 | CMOS OV9715 | CMOS OV2710 | IMX179 | CMOS OV2710 |
| Resolution | Max.1920X1080 | 2592 X 1944 | Max.2560HX960 | Max.1920X1080 | Max.3264X2448 | Max.1920X1080 |
| Frame | 30fps | 30fps | 60fps | 100fps | 30fps | 100fps |
| Lens | 3.7mm | 170 degree fisheye lens | V90 Lens | 2.8-12mm | 5-50mm | 3.6mm fixed lens |
| Plug & Play | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Support OTG | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| System | Android/Linux/Window/Mac | Android/Linux/Window/Mac | Android/Linux/Window/Mac | Android/Linux/Window/Mac | Android/Linux/Window/Mac | Android/Linux/Window/Mac |
| Compression Fotmat | H.264/Mjpeg/YUY2 | MJPEG / YUV2 | Mjpeg/YUY2 | Mjpeg/YUY2 | Mjpeg/YUY2 | Mjpeg/YUY2 |
| Mini Illumination | 0.01lux | 0.1lux | 0. 1lux | 0.01lux | 0.5lux |
